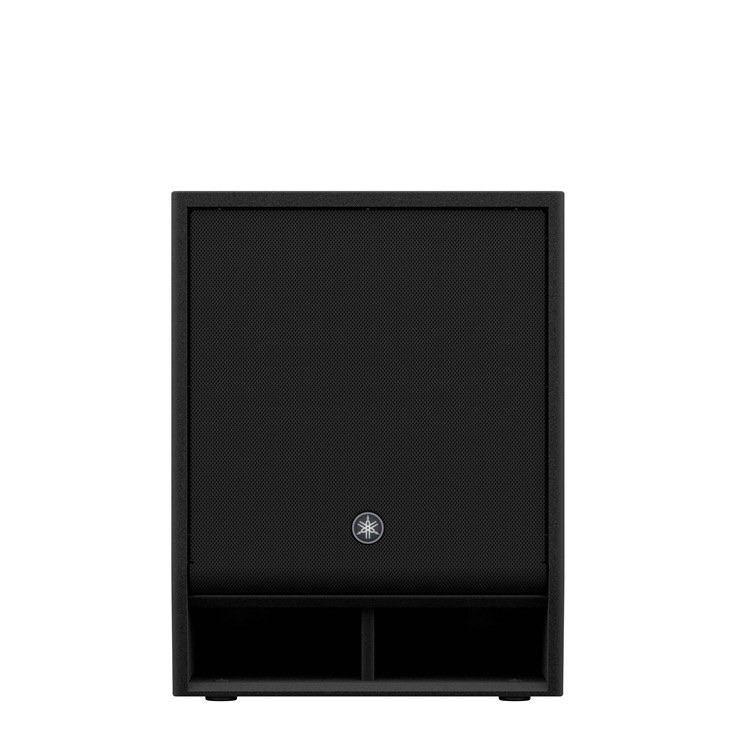

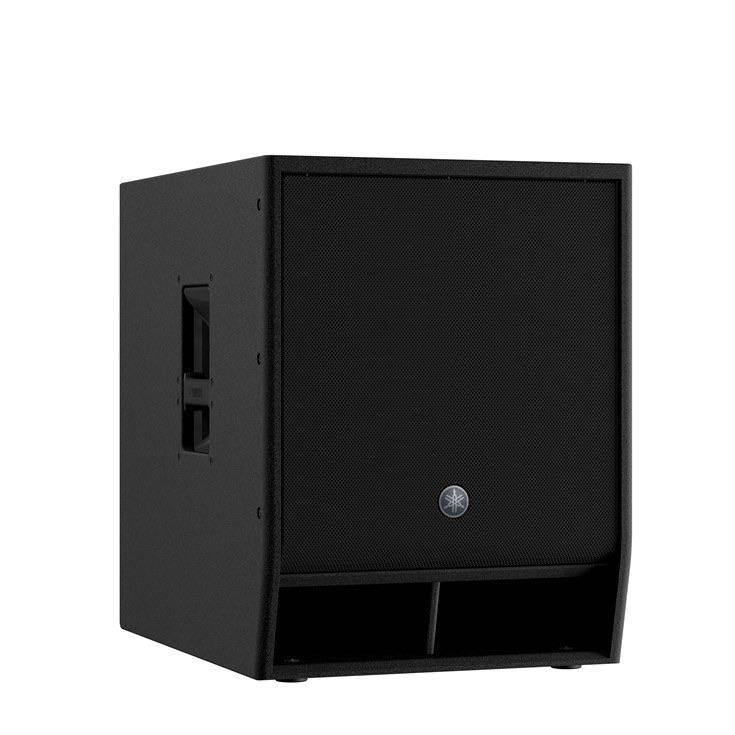

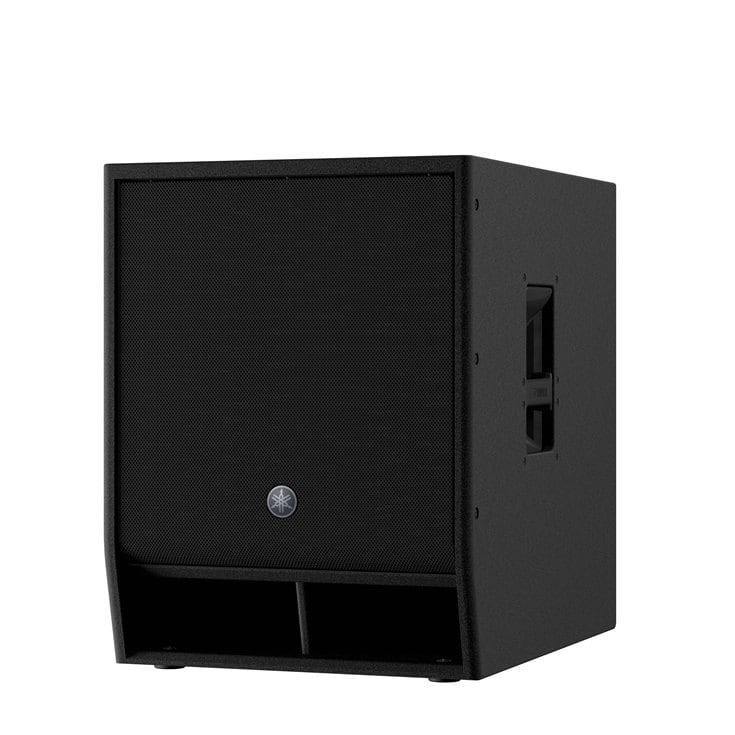

Yamaha DXS15XLF 15 Inch 1600 Watt Powered Subwoofer
Yamaha DXS15XLF 15 Inch 1600 Watt Powered Subwoofer
Couldn't load pickup availability
Power, Performance, and Easy System Integration
The Yamaha DXS15XLF offers thunderous low end, superb clarity, and best-in-class SPL performance. This powered bass-reflex subwoofer boasts a high-power 1,600-watt Class D amplifier, a 33Hz–150Hz frequency range, and can tackle any application you throw at it. Sophisticated DSP processing yields high-resolution sound with super-low latency, while optimized presets and an intuitive LCD display make dialing in your settings a piece of cake. This sub employs a lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating. The DXS15XLF is a must-have for completing your full-range DZR system.
Sophisticated DSP processing
At Sweetwater, we're impressed by the DXS15XLF's intelligent DSP processing. Yamaha's D-XSUB LF processing gives you total command of your low end. Choose between a NORMAL mode that offers balanced low-frequency response and a BOOST mode that provides tighter, more focused bass with extra punch. Beyond that, XTENDED LF mode drops your low-end even lower, yielding chest-thumping low-frequencies that must be heard to be believed. Ensure a clean stage monitoring environment, thanks to the DXS15XLF's Cardioid Mode, which effectively decreases the sound pressure onstage while increasing the low-frequency output directed towards your audience. Despite all this powerful DSP, the DXS15XLF remains easy to use, thanks to optimized factory presets and an intuitive LCD screen.
Custom-designed transducer

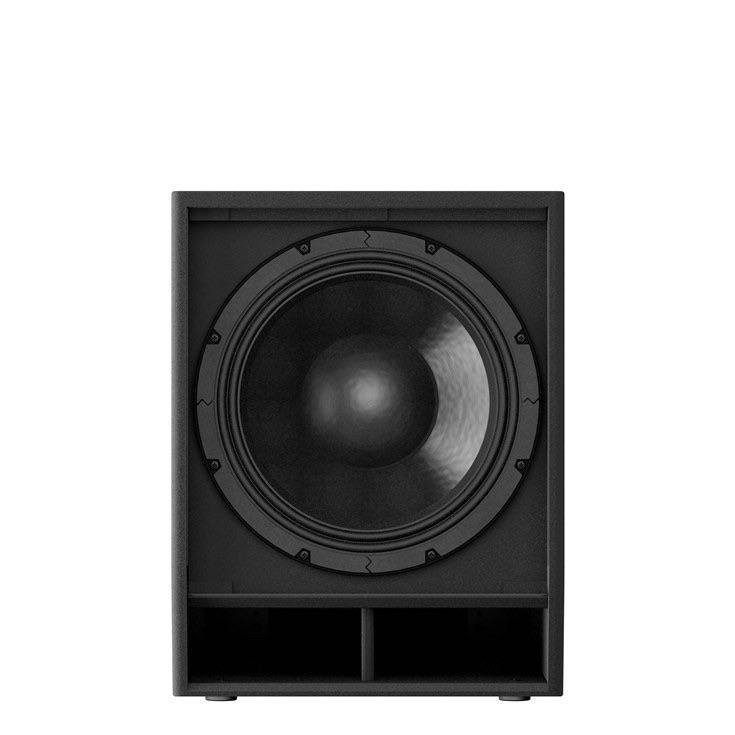

The Yamaha DXS15XLF is loaded with a great-sounding, custom-designed transducer. Its durable die-cast aluminum frame and 4-inch voice coil deliver impressive bass response, even at cranked volumes. Experience extraordinary low-frequency linearity, thanks to the DXS15XLF's dual damper, which mitigates unwanted vibration during high-output situations.
Yamaha DXS15XLF Features:
- Powered subwoofer with 15" LF driver
- A must-have for completing your full-range DZR system
- Boasts a high-power 1,600-watt Class D amplifier and 33Hz–150Hz frequency range
- D-XSUB LF processing gives you total command of your low end with NORMAL, BOOST, and XTENDED LF modes
- Cardioid Mode decreases stage volume while increasing the low-frequency output directed towards your audience
- Optimized factory presets and intuitive LCD screen make operation easy
- Great-sounding, custom-designed transducer
- Dual damper ensures extraordinary low-frequency linearity during high-output situations
- Lightweight, yet durable, plywood cabinet with a premium-grade polyurea coating
Tech Specs
- Powered/Unpowered:Powered
- LF Driver Size:15" Cone, 4" Voice Coil, Ferrite Magnet
- Power Rating:1230W Continuous
- Total Power:1600W Peak

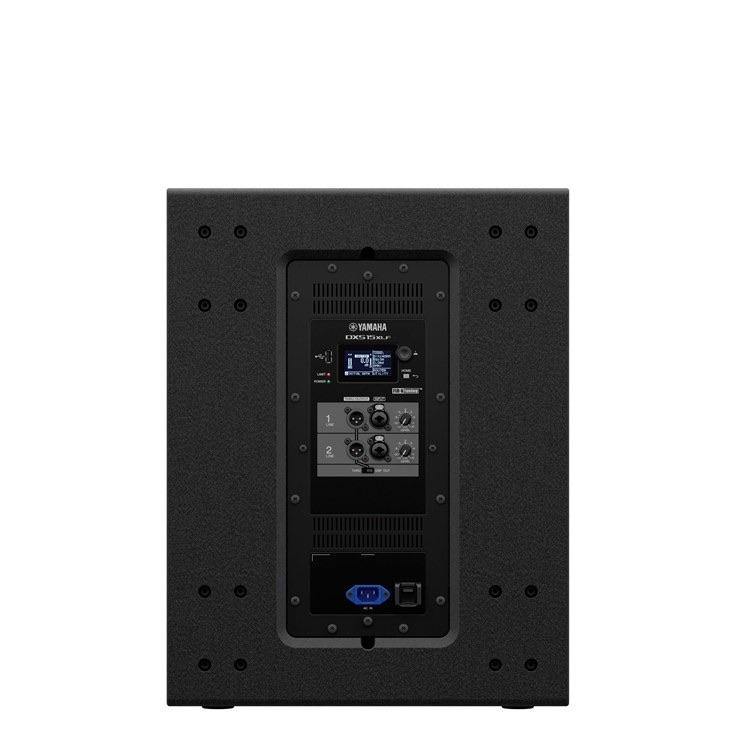

- Inputs:2 x XLR-1/4" combo
- Outputs:2 x XLR (thru/output)
- Other I/O:1 x USB Type A
- Frequency Range:33Hz-150hz (-10 dB)
- Maximum Peak SPL:136dB SPL @ 1m
- Signal Processing:EQ, Delay, Cardioid Mode, D-XSUB Processing
- Mounting Options:Floor, Pole Mount with 1.37" (35mm) and M20 sockets
- Power Source:Standard IEC AC cable
- Enclosure Material:Plywood Cabinet with Polyurea Coating, Black Finish
- Height:23.1"
- Width:17.7"
- Depth:23.6"
- Weight:88.2 lbs.
- Manufacturer Part Number:DXS15XLF
