Yamaha DXR12Mk3 Powered Loudspeaker DXR12 Mk3
Yamaha DXR12Mk3 Powered Loudspeaker DXR12 Mk3
Couldn't load pickup availability
Sound Changes Everything
One concert. One event. One bass drop. Often, the trajectory of your band, your brand, your business, or your career can be distilled down to a single, pivotal moment that changes everything. When that moment arrives you need to know that your audience is experiencing the full range of your expression and the sheer passion of your performance. The DXR mk3 Series continues the legacy of power and premium sound established by one of Yamaha’s most celebrated loudspeaker lineups, delivering higher output, outstanding flexibility, and the level of reliability that professionals the world over depend on for their most important performances. From the painstaking selection of premium component materials, to the development of intelligent, high-performance DSP features, every aspect of the DXR mk3’s design empowers users with the capability and confidence they need for those crucial moments when your sound makes all the difference in the world.
Significant improvement in acoustic performance
1 - Yamaha Proprietary High-Durability LF/HF Speaker Units
2 - Enhanced High-Frequency Directivity and Optimized Low-Frequency Response
3 - Lightweight, High-Performance Molded Enclosure
Power and High-Performance DSP that Unlocks True Sonic Potential
4 - Highly Visible, User-Friendly LCD Panel & Encoder
5 - Advanced DSP for Sophisticated Signal Processing
6 - 2000 W Class-D High-Power Amplifier
7 - Comprehensive/versatile inputs routing with Bluetooth® audio

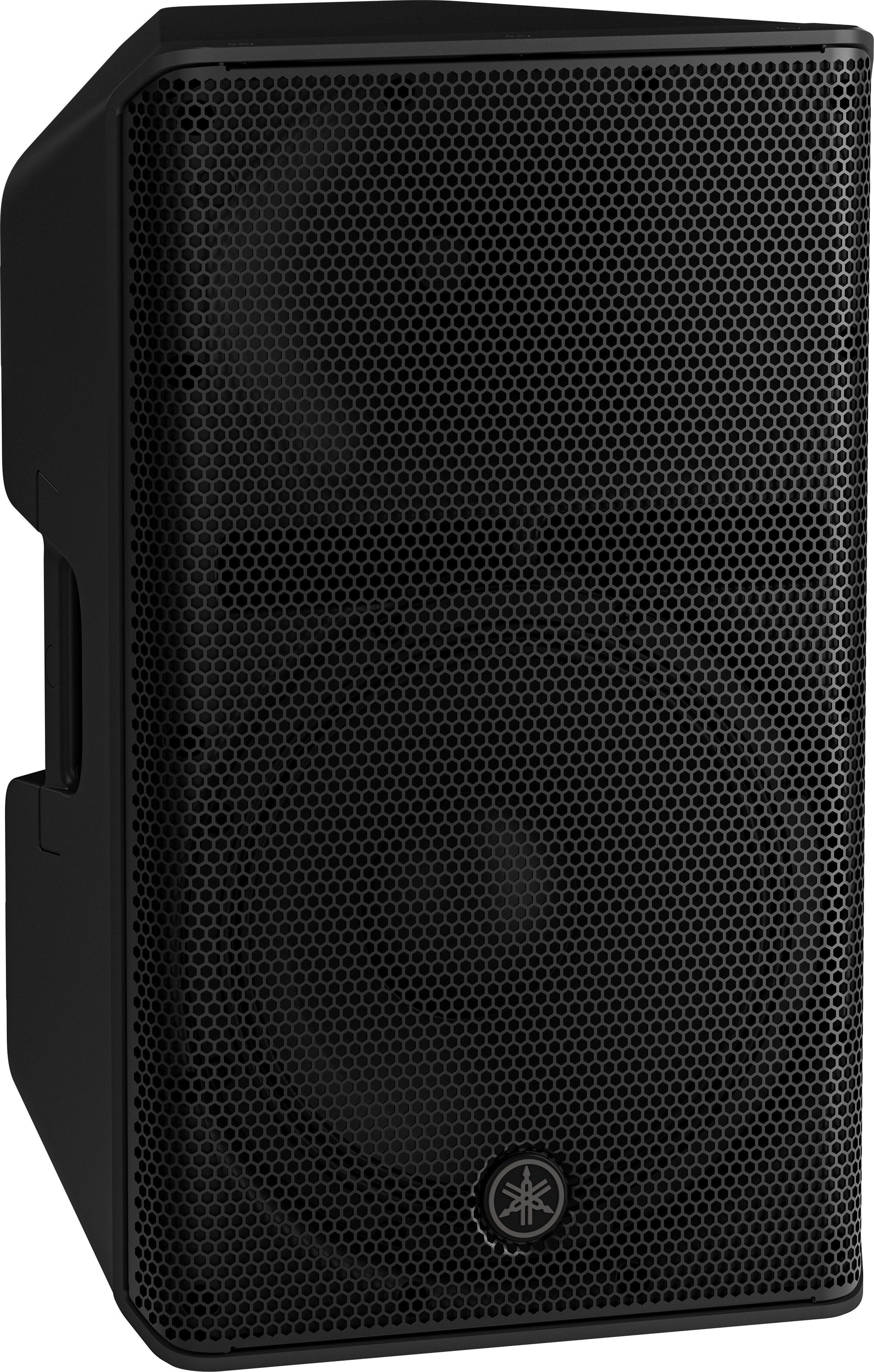

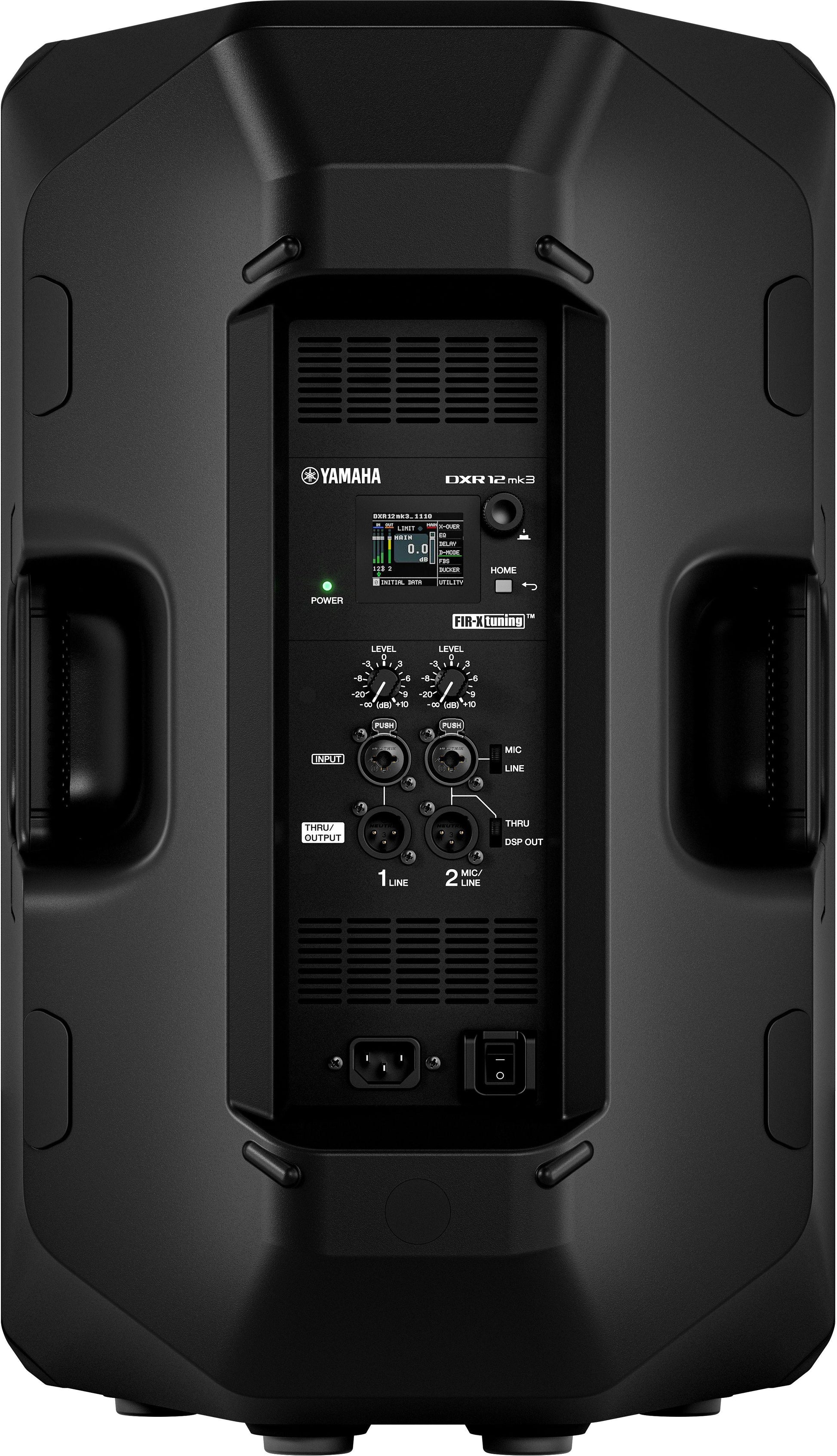

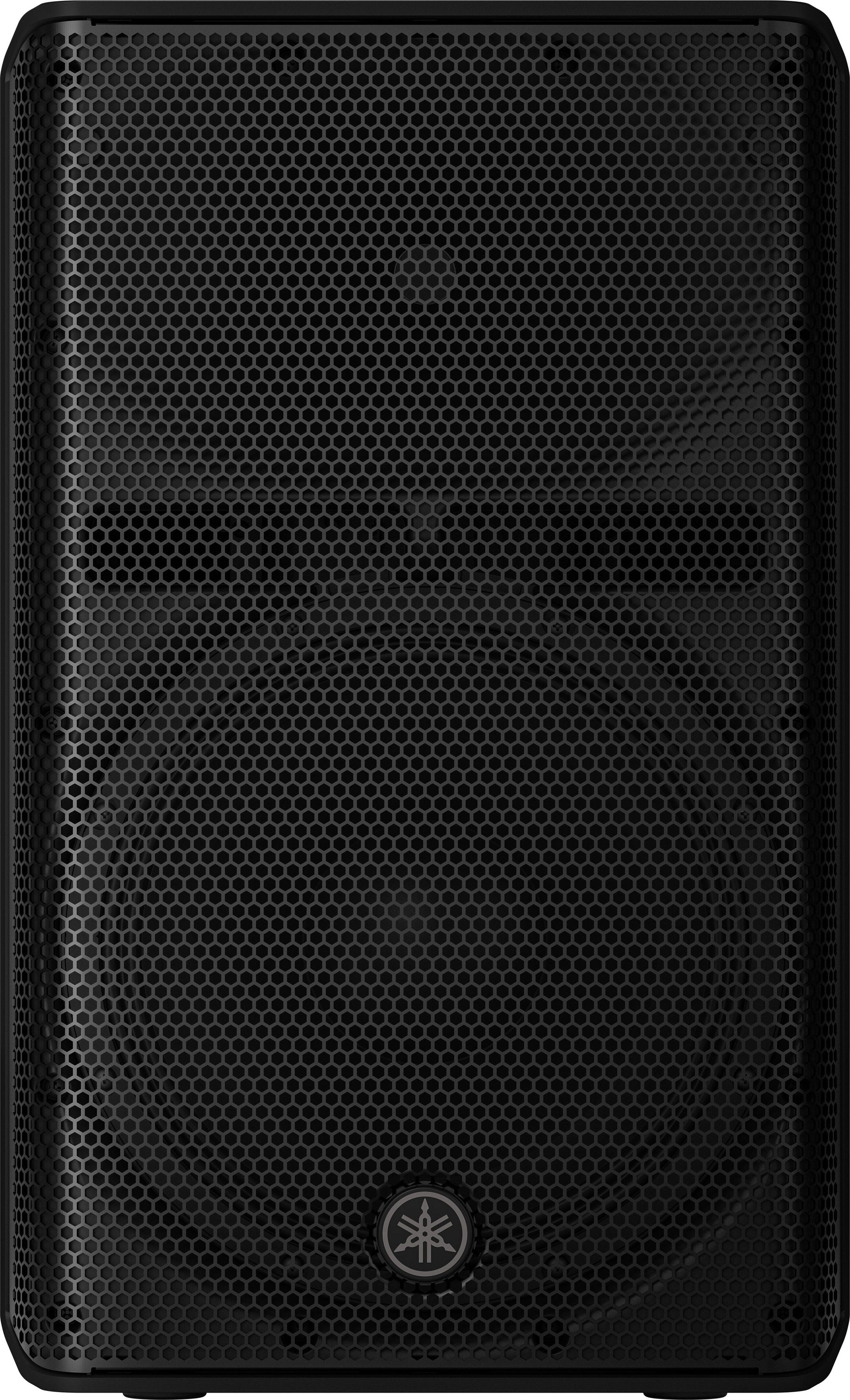

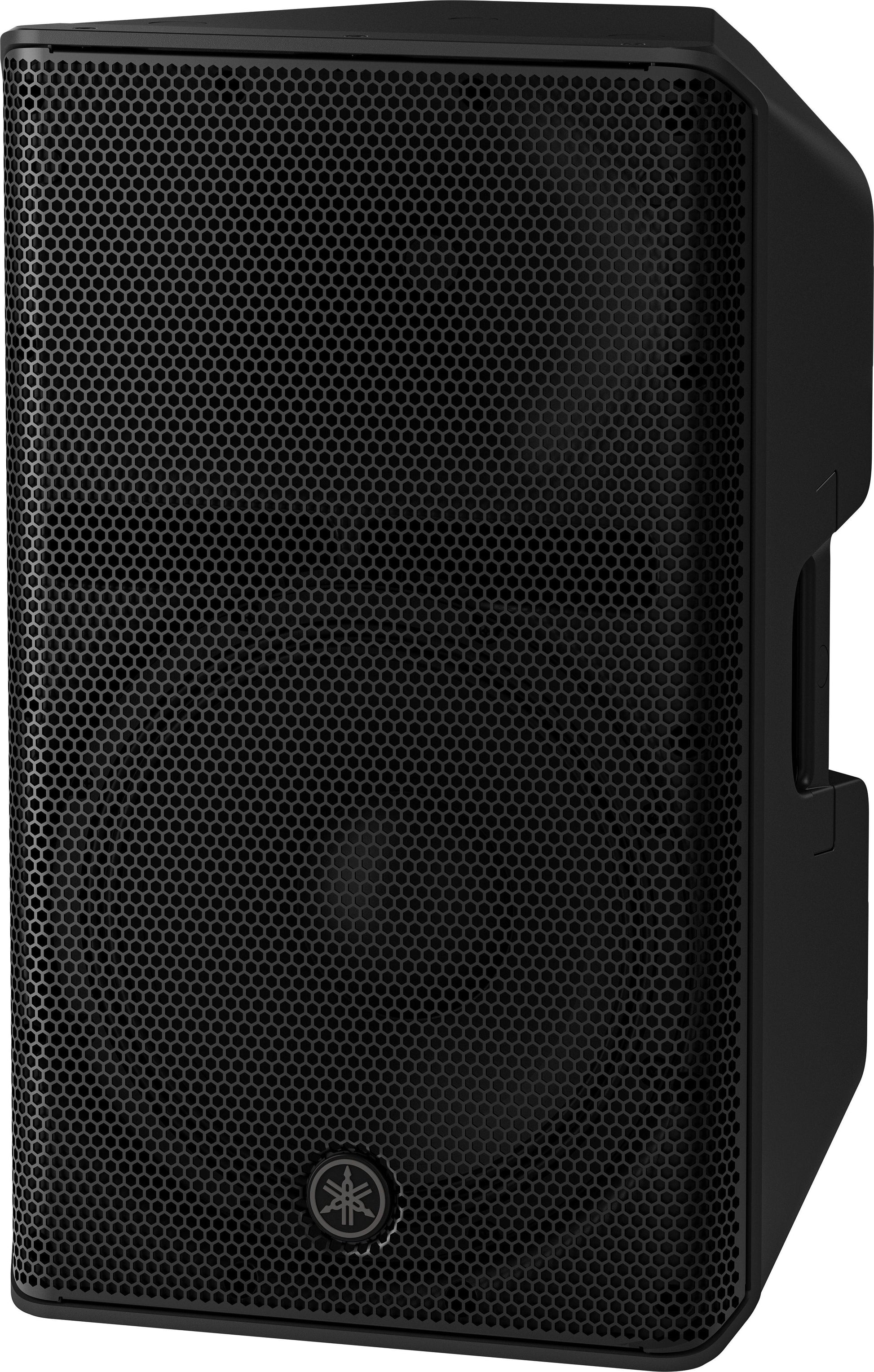

The DXR12 mk3
Is a 2-way, bi-amped, powered loudspeaker that delivers a perfect balance of portability and performance, delivering exceptional clarity, precision, and a powerful 134 dB SPL output. Ideal for front-of-house use, floor monitoring applications, or even as stage side fills—the DXR12 mk3 is an excellent choice for a wide range of sound reinforcement needs. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.
- 12" LF + 1.75" HF proprietary high-durability speaker units
- The large-diameter horn secures directivity control across a wide frequency range
- Optimized port positioning reduces standing wave effects
- Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
- Newly developed 2000W Class-D amplifier
- FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
- Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
- DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"
- Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
- Compatible with audio streaming via Bluetooth®
- Intelligent feedback suppressor automatically eliminates unpleasant feedback
- Optional UB-DXRDHR12A U-bracket allows both for vertical or horizontal use
- Optional SPCVR-DXR123 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
- Rigging points for use with eye bolts
- Dual-angle pole sockets offer both 0° or a -7° down tilt
