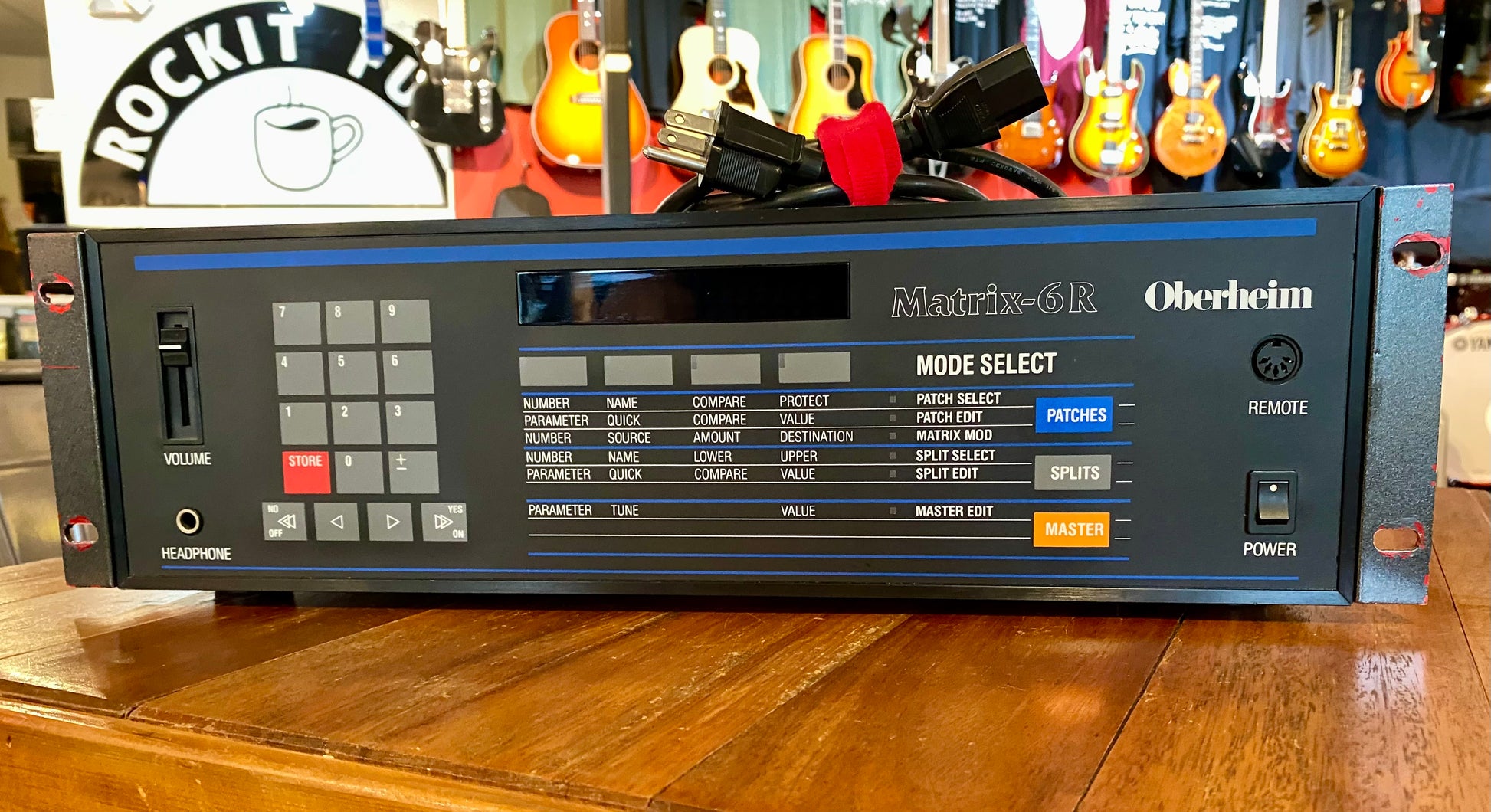

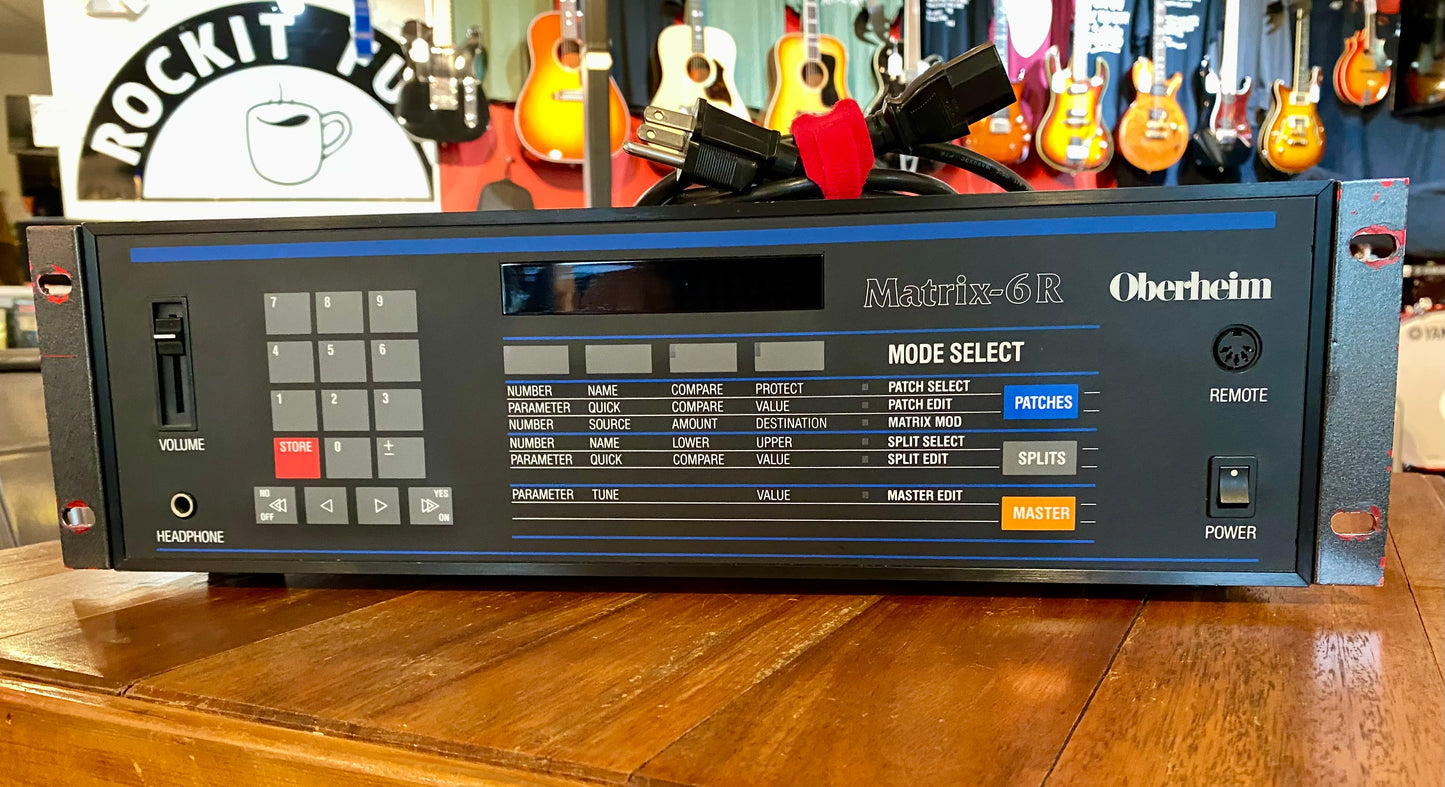

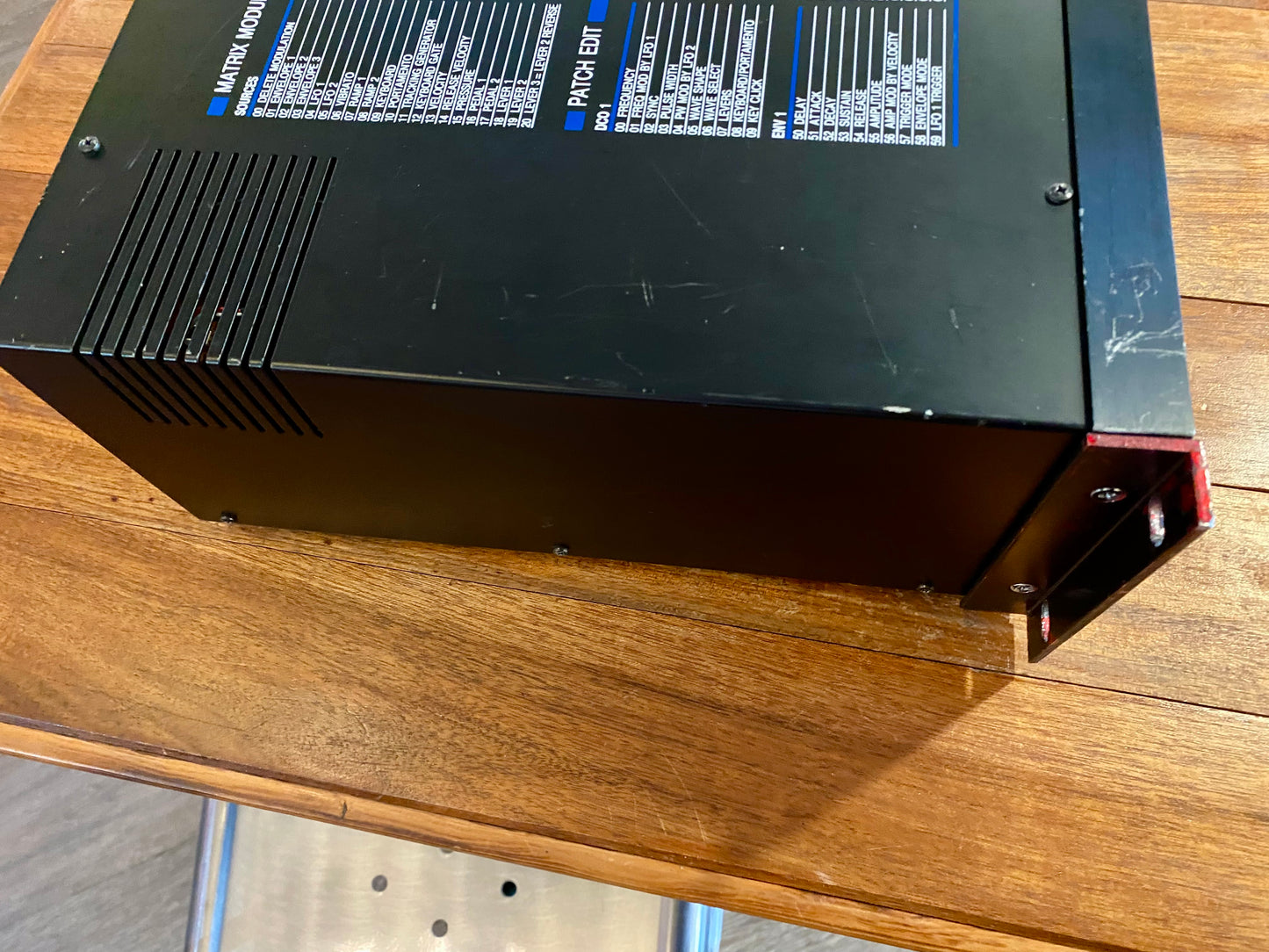

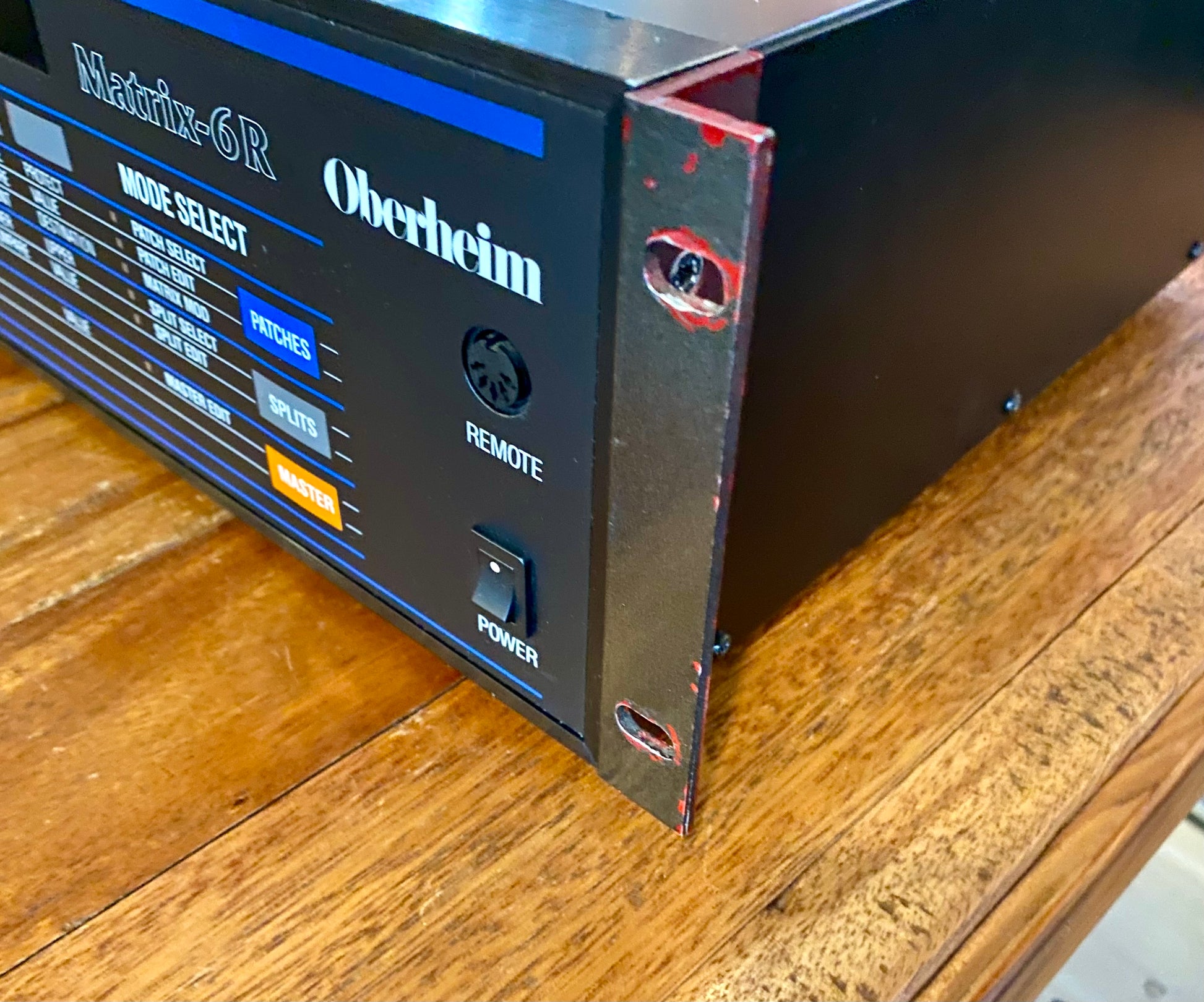

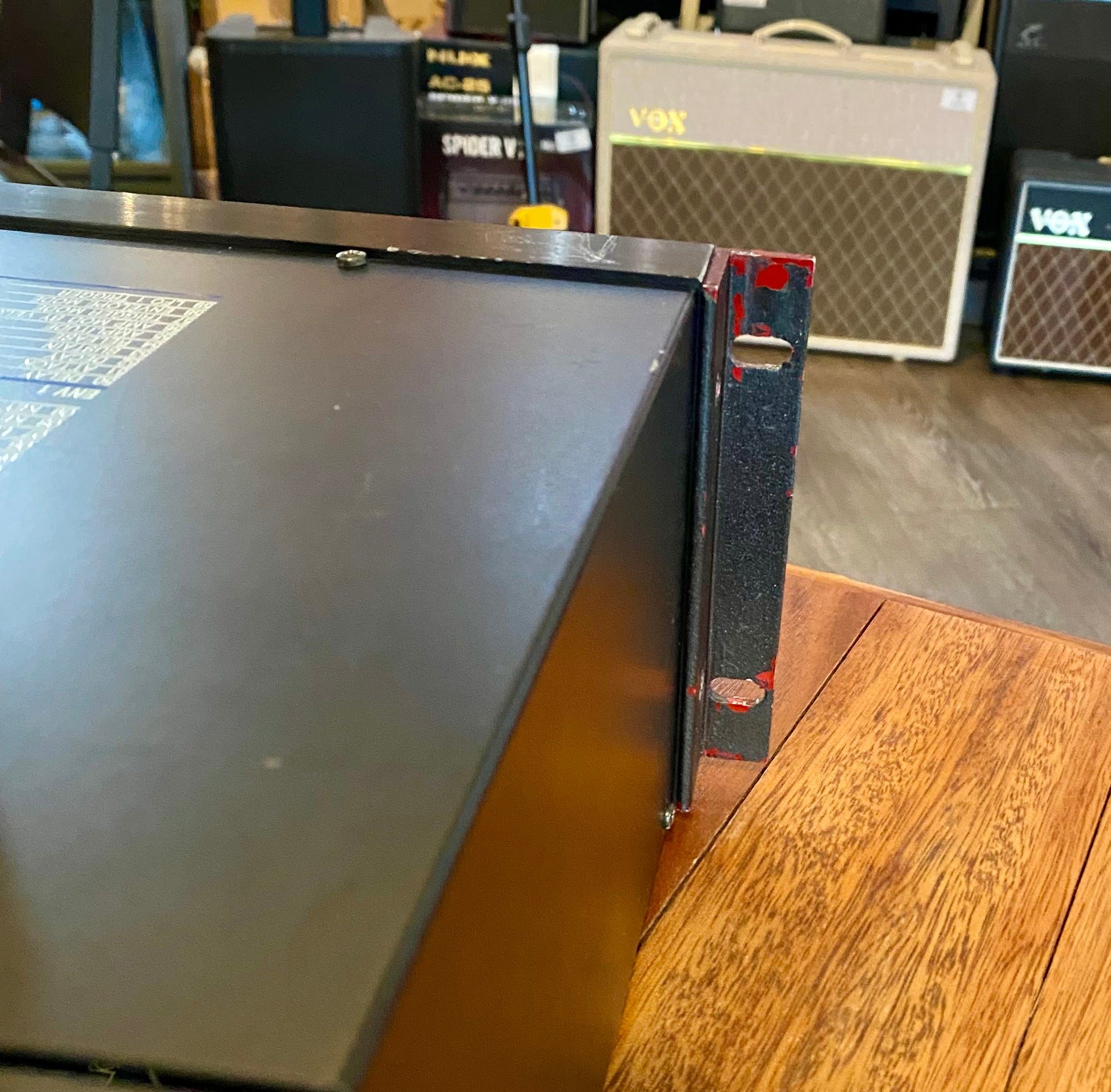

Vintage Oberheim Matrix 6R Rack Mount Synthesizer - Used
Vintage Oberheim Matrix 6R Rack Mount Synthesizer - Used
Regular price
$2,199.99 CAD
Regular price
Sale price
$2,199.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Used vintage 80’s consignment item. Guaranteed 100% working condition. Final Sale.
The Oberheim Matrix-6R is a 3U rack (velocity and aftertouch sensitive), 6 voice polyphonic, duo-timbral (digital/analog hybrid) synthesizer, featuring dual oscillators (with sync), resonant 24dB low pass filter (CEM3396), three DADSR envelopes, three LFOs, dual ramp generators, a tracking generator, 100 presets, MIDI interface, along with extensive (matrix style) modulation capabilities.
Physical

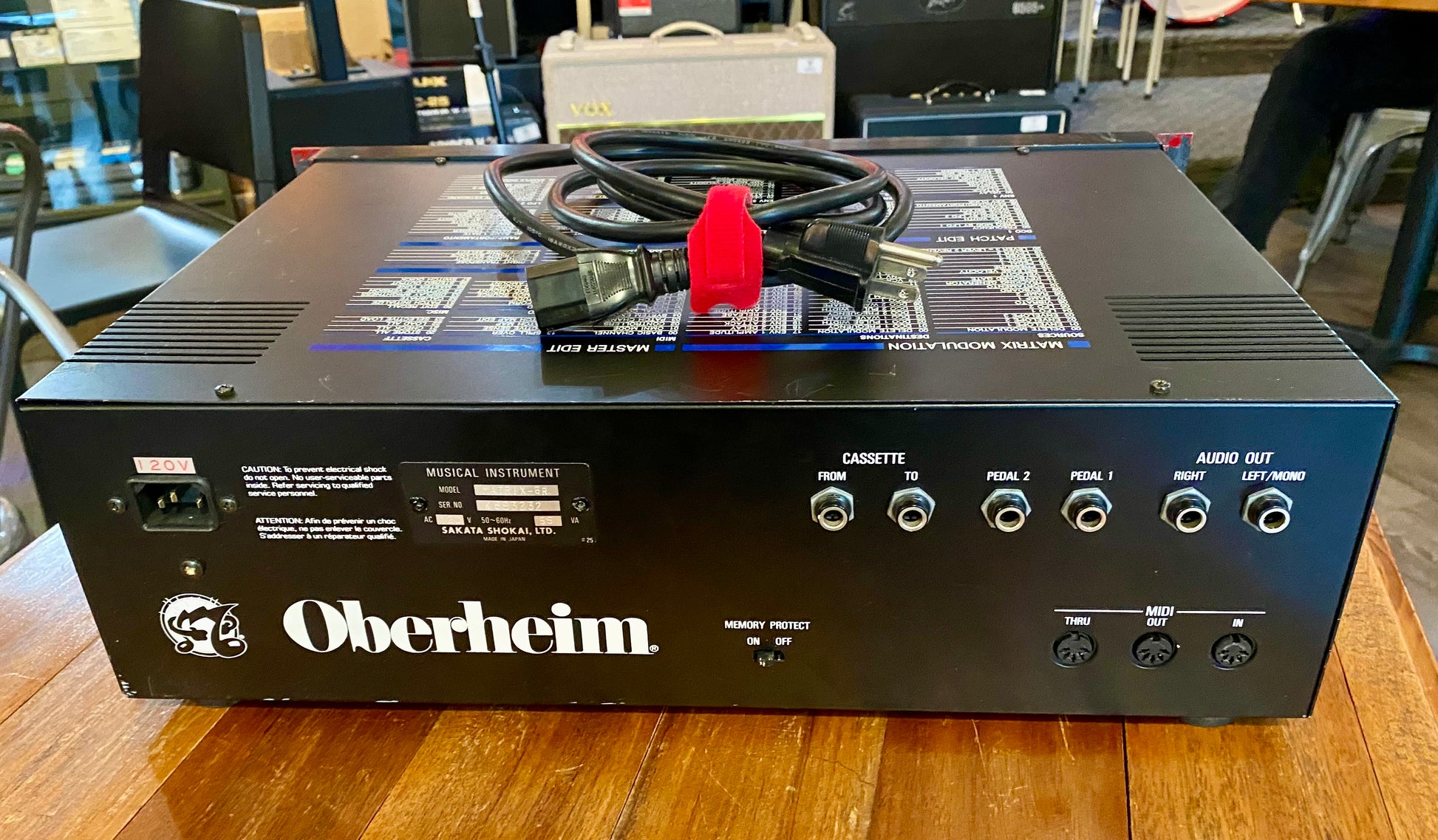

| Form Factor | Dimensions | Weight | Audio Input | Audio Output | Communication Port | Control Input | Control Output | Switch Input | Power |
|---|---|---|---|---|---|---|---|---|---|
| 3U rack | ? | ? | no | stereo | tape MIDI: IN OUT THRU | pedal MIDI | MIDI | pedal | AC |
Interface
| Compatibility | Multitimbral Memory | Program Memory | External Storage | External Programming | UI Input | UI Output |
|---|---|---|---|---|---|---|
| Matrix6 Matrix6R Matrix1000 | 50 | 100 | MIDI SysEx | MIDI | task based | LED display |
Architecture
| Multitimbral | Polyphony | Unison | Architecture |
|---|---|---|---|
| 2 | 6 | no | DCO1+DCO2->VCF->VCA1->VCA2 |
Output
| Effects | Pan Modulator | Volume Modulator | Headphone |
|---|---|---|---|
| no | no | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | yes |
Control
| Arpeggiator | Arpeggiator External | Sequencer | Sequencer Memory | Sequencer External | Continuous | Program Change |
|---|---|---|---|---|---|---|
| no | N/A | no | N/A | N/A | pedal MIDI | pedal MIDI |
Keyboard
| Key Pressure | Chord Memory | External Control | External Sustain | Key Scaling | Velocity Curves |
|---|---|---|---|---|---|
| channel | no | MIDI | pedal MIDI | 1 | 3 |
Source
| Name | Signal Class | Waveform | Octave Range | Amplitude Modulator | Harmonics Modulator | Pitch Modulator | Wave Assign Modulator |
|---|---|---|---|---|---|---|---|
| DCO1 | analog | saw/triangle pulse (mix) | 3 | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | sync:DCO2 PWM/shape: key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | portamento key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | no |
| DCO2 | analog | saw/triangle pulse (mix) | 3 | key Lag velocity release-velocity aftertouch TrackingGen1-3 Ramp1-4 EG1-5 Pedal1-2 LFO1-5 Vibrato Lever1-2 | PWM/shape: key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | portamento key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | no |
Filter
| Name | Signal Class | IC | Resonant | Shape | Frequency Modulator | Resonance Modulator | Shape Modulator |
|---|---|---|---|---|---|---|---|
| VCF | analog | CEM3396 | yes | 24dB low-pass | portamento key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate FM:DCO1 | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | no |
Envelope
| Name | Level | Rate | Loop | Polarity | Trigger | Level Modulator | Rate Modulator |
|---|---|---|---|---|---|---|---|
| EG1 | sustain | delay attack decay release | repeat | no | single multi LFO1 external gate | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | individual: key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate |
| EG2 | sustain | delay attack decay release | repeat | no | single multi LFO1 external gate | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | individual: key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate |
| EG3 | sustain | delay attack decay release | repeat | no | single multi LFO1 external gate | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | individual: key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate |
| Ramp1 | - | attack | no | no | single multi external gate | no | no |
| Ramp2 | - | attack | no | no | single multi external gate | no | no |
LFO
| Name | Waveform | Delay | Polarity | Sync | Delay Modulator | Level Modulator | Rate Modulator |
|---|---|---|---|---|---|---|---|
| LFO1 | saw:up|down square triangle random noise sample:mod-source | via Tracking Generator | off single multi external | lag key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | ||
| LFO2 | saw:up|down square triangle random noise sample:mod-source | via Tracking Generator | off single multi external | lag key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | key velocity release-velocity aftertouch TrackingGen Ramp1-2 EG1-3 Pedal1-2 LFO1-2 Vibrato Lever1-3 gate | ||
| Vibrato | saw:up|down square triangle random noise sample:mod-source | via Tracking Generator | off single multi external | Pedal1 Lever2 | Pedal1 Lever2 |
