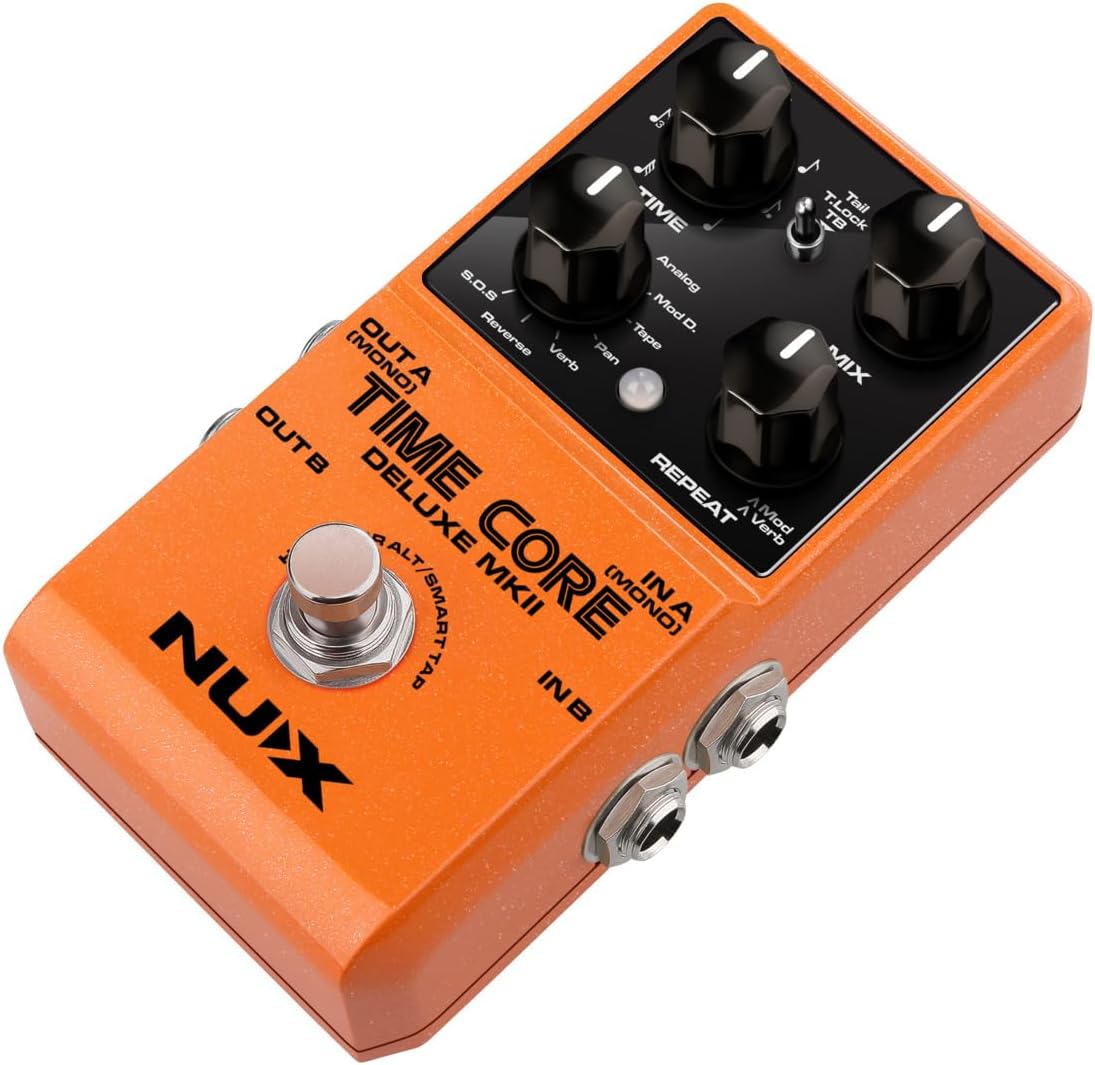

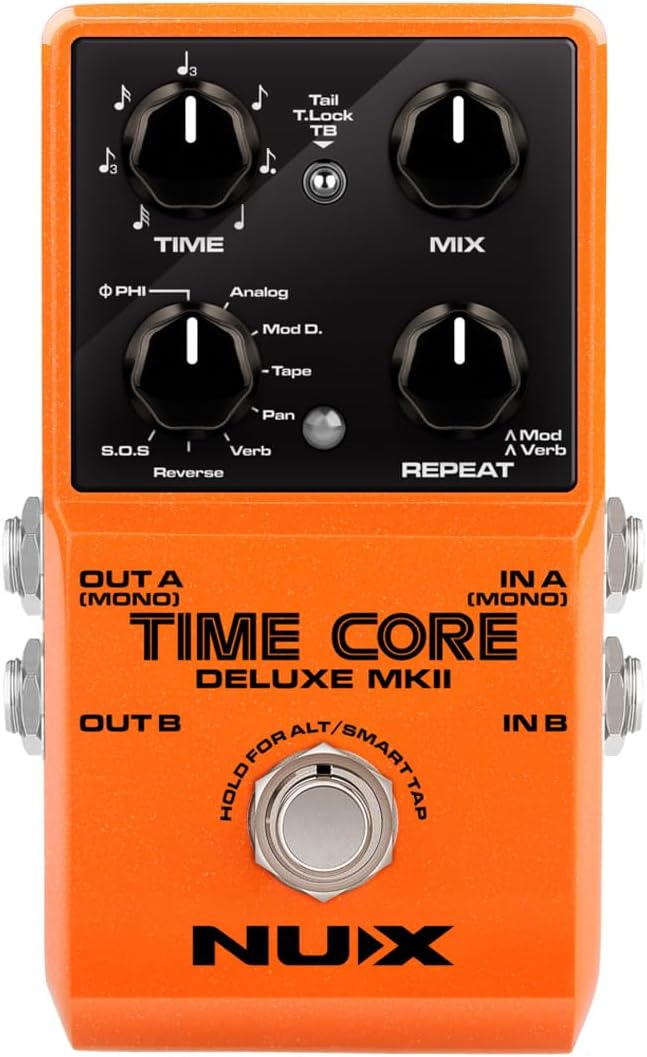

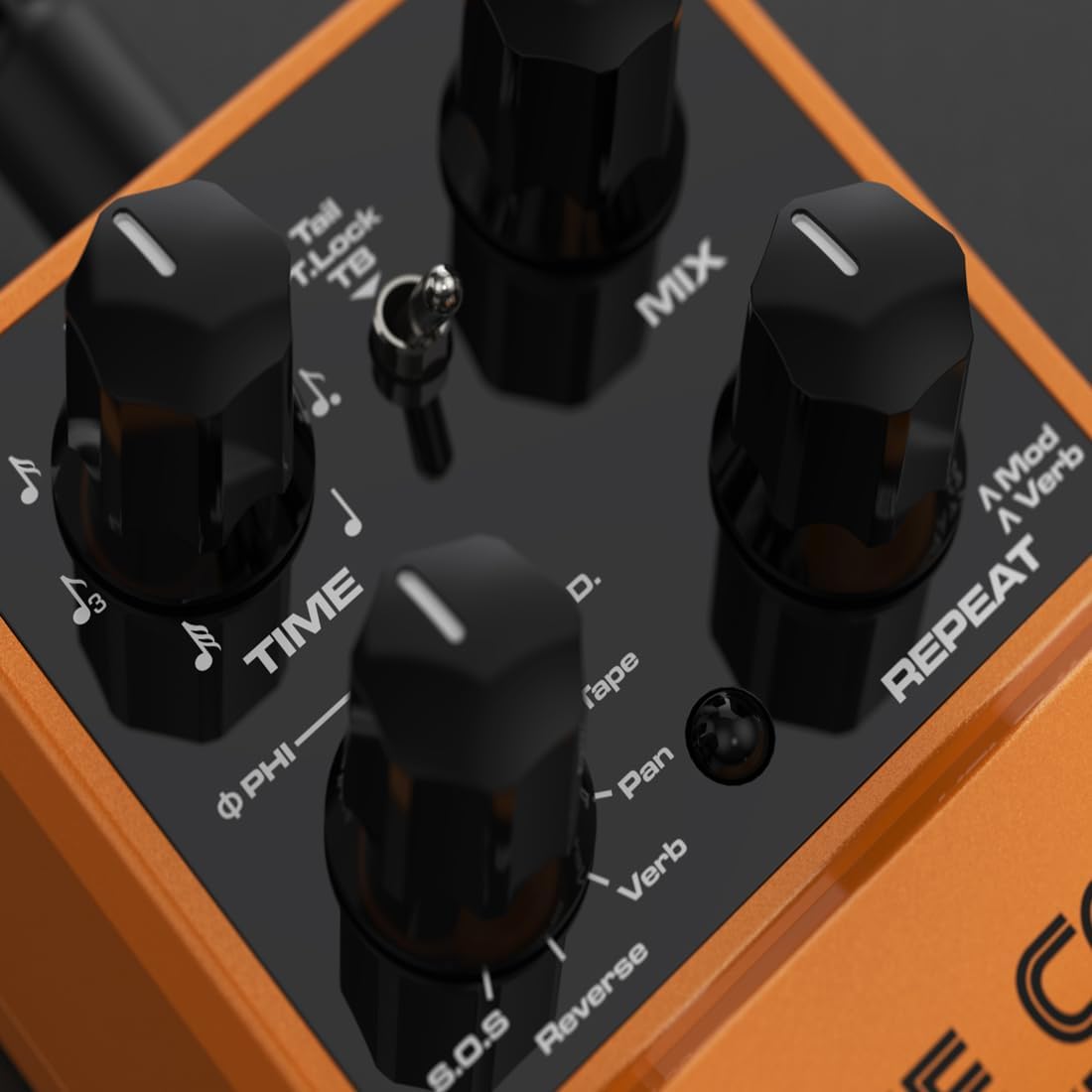

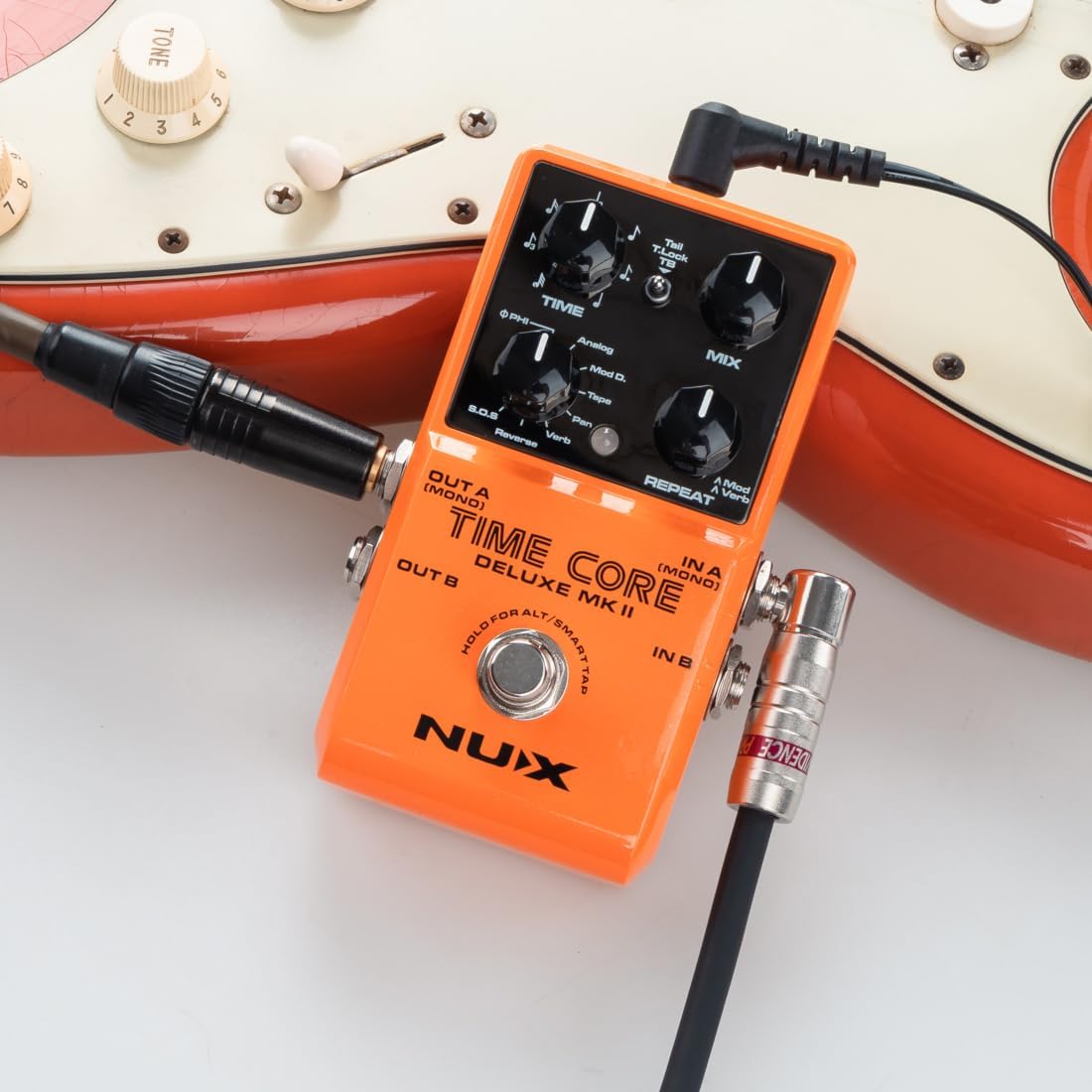

NUX TimeCore-Deluxe-Mk2 Delay Guitar Effects Pedal

– 7 delay types in a compact enclosure.

– ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head. (80ms~1000ms)

– Analog Delay: Warm sound with natural treble decay. (40ms~403ms)

– Modulation Delay: Lush and rich chorus with digital delay. (20ms~1500ms)

– Tape Echo: High-frequency saturation and low-end decay. (55ms~552ms)

– Pan Delay: Creative natural stereo feeling. (80ms~1000ms)

– Verb Delay: Plate Reverb algorithm with Digital Delay to create an ambient atmosphere. (80ms~1000ms)

– Reverse Delay: Inspire guitarists for new ideas. (320ms~1240ms)

– S.O.S: 40 seconds stereo phrase loop.

– Sub-division with Smart Tap Tempo. (Maximum: 1580ms)

– True-bypass or Buffer-bypass(Tails).

– Supports Stereo.

– Kill Dry.

– Low power consumption. (less than 120mA)

– Analog dry signal for low noise and zero latency.

– Input Impedance: 1MΩ

– Output Impedance: 1kΩ

– Dynamic Range: 104 dB

– DSP Processing: 48KHz / 32-bit

– A/D D/A Sampling Rate: 48KHz / 24-bit

– Power: 9V DC(Negative tip, Optional ACD-006A adapter)

– Current Draw: less than 120mA

– Dimensions: 122(L) X 72(W) X 47(H)mm
