YAMAHA DXR8 8" POWERED SPEAKER - Used - Consignment
YAMAHA DXR8 8" POWERED SPEAKER - Used - Consignment
Couldn't load pickup availability
Used consignment item. Excellent condition - very minimal wear.
Selling as is - final sale!
Performance runs in the family, and like the acclaimed DSR Series before it, DXR Series loudspeakers offer superb high-definition sound and class-leading sound pressure levels - yet in a more compact and extremely functional design that provides a level of versatility unmatched by any speaker in its class today.
The DXR Series is comprised of four full-range models perfectly suited for front-of-house sound, monitors, simple amplification, rigged applications and more. Combining the series with Yamaha's newly designed DXS subwoofers will further elevate your system's performance, giving you versatile control of its thunderous bottom end. With the perfect balance of raw power and innovative speaker technologies, you can depend on DXR Series speakers to deliver the full power of your performance to every member of your audience.
DXR8
The most compact of the DXR Series speakers, the DXR8 makes the most of its 1100W of power, delivering extremely high output while maintaining outstanding resolution. Adding a DXS12 subwoofer gives you an ultra-compact high-power SR system.
Main Features
Ultra-Precise 48Bit DSP Processing for High-Definition Sound
The compact and durable ABS cabinet is ideal for live sound applications and touring
The bass-reflex cabinet design provides enhanced bass performance with reduced turbulence
The 8" woofer and 1.4" compression tweeter offer high-resolution audio with a wide frequency response
The crossover uses a FIR-X linear phase filter to optimize driver performance
The biamplified design provides a combined peak output power of 1100W for a strong performance with minimal distortion
A D-contour processor allows you to use the speaker as a main/FOH speaker or as a stage monitor

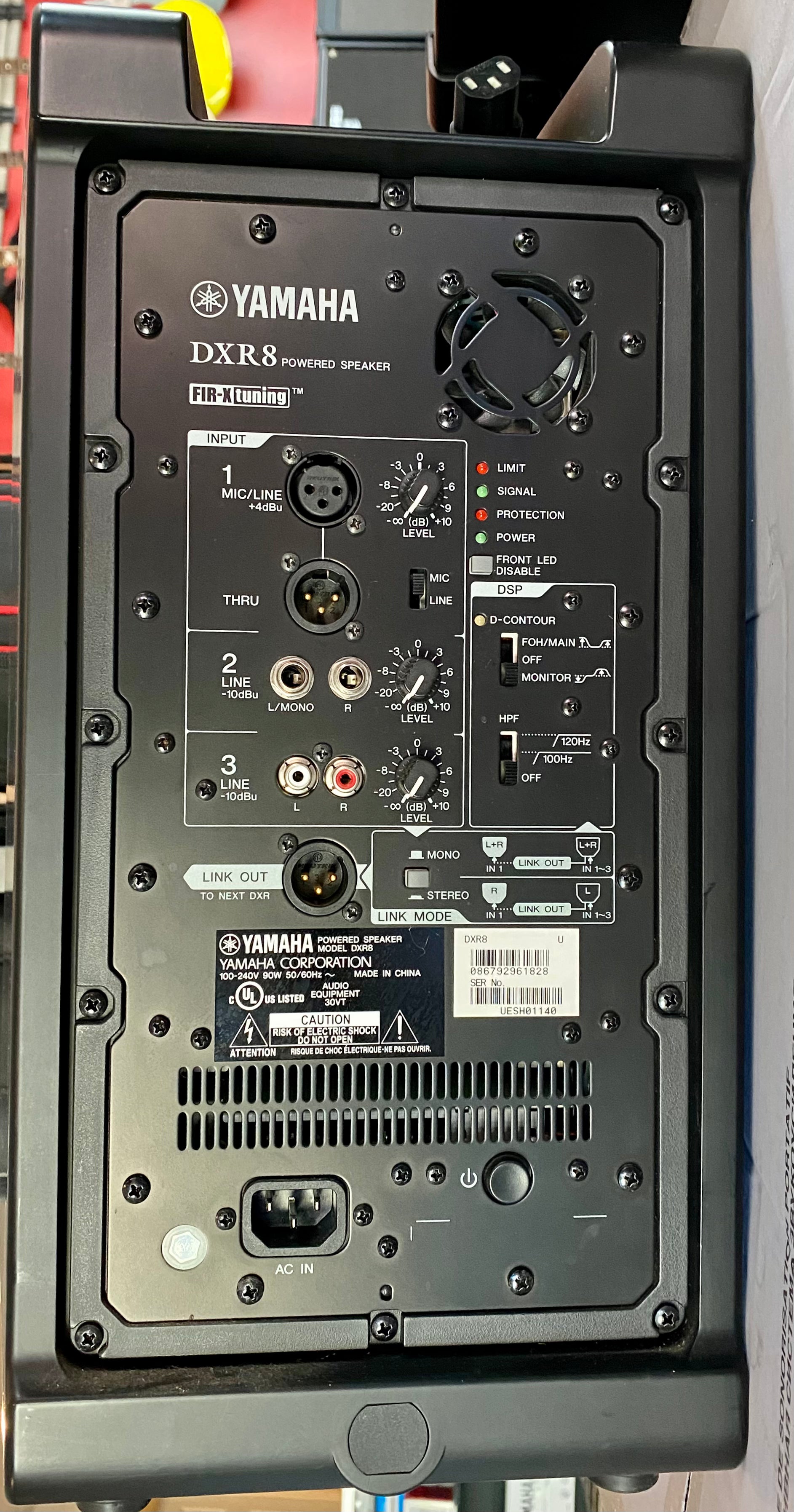

The rear panel has XLR, 1/4", and RCA inputs, as well as XLR thru and output connectors for wide compatibility with a variety of professional sound systems and devices

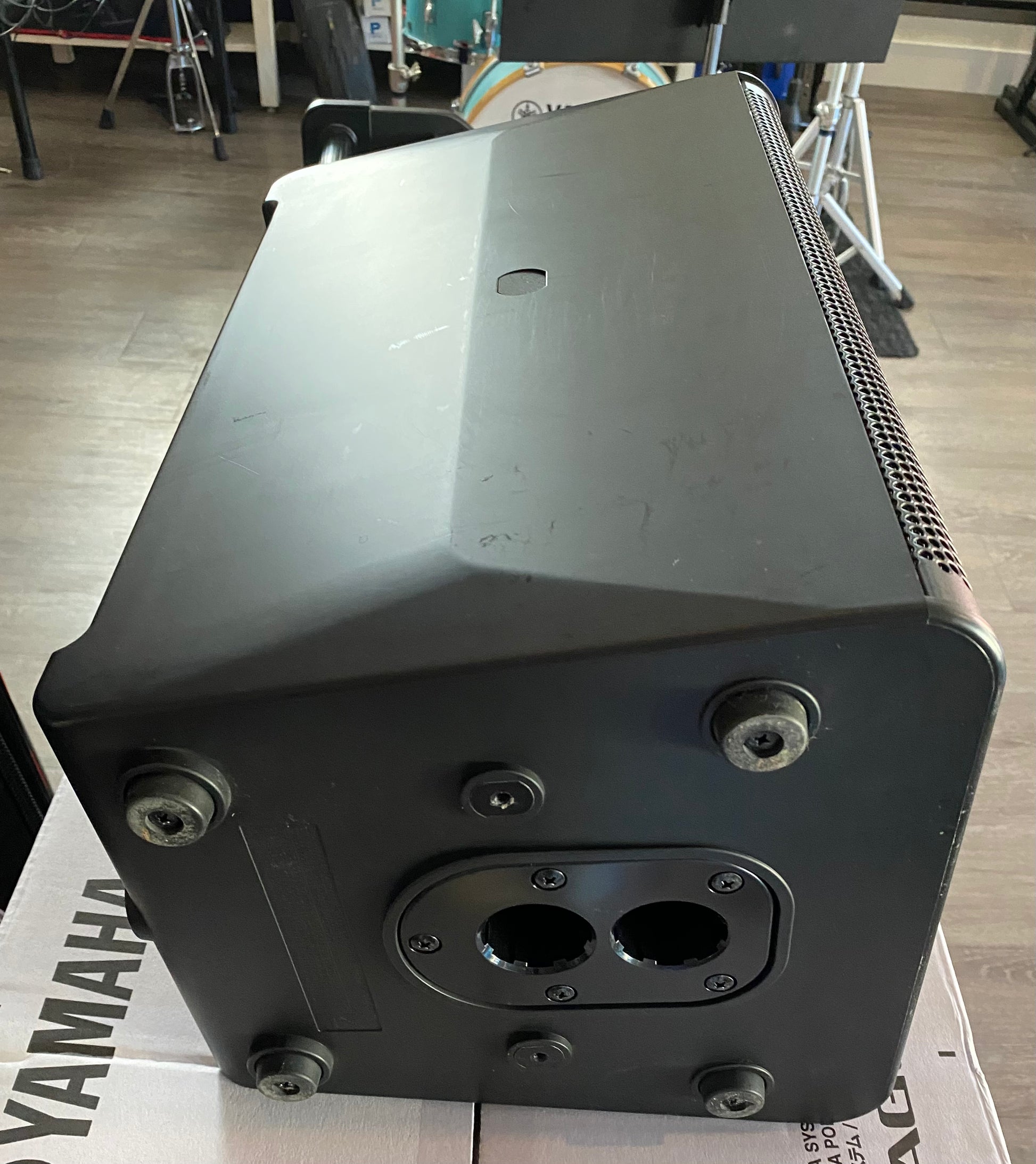

A standard 35mm pole socket allows you to mount the speaker on top of a subwoofer, while M8 fly points allow suspended installation. An optional U-bracket is available separately for wall mounting
General specifications - DXR8
Speaker type: Active, 2-way, Bi-amplified, Bass-reflex type
Frequency range: (-10dB) 57Hz - 20kHz
Nominal coverage: Horizontal 90 degrees, Vertical 60 degrees
Components:
LF - Diameter: 8" cone, Voice Coil: 2", Magnet: Ferrite
HF - Diaphragm: 1.4", Type: 1" throat compression driver, Magnet: Ferrite
Crossover: FIR-X tuning (linear phase FIR filter)
Output power: Dynamic: 1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Maximum output level (1m; on axis): 129dB SPL
I/O connectors:
INPUT: XLR-3-31 x1
INPUT2: Phone x2
INPUT3: RCA PIN x 2
THRU: XLR3-32 x 1 (Parallel with INPUT 1)
LINK OUT: XLR x 1
Processors: D-CONTOUR :FOH / MAIN, MONITOR, OFF
Power requirements: 100V - 240V, 50Hz/60Hz
Power consumption: 90W
Flying and mounting hardware: Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
Pole socket: 35mm with 2-way features (0 or 7 degrees)
Dimensions(W x H x D): 280mm (11") x 458mm (18") x 280mm (11")
Net weight: 13.5kg (29.8lbs)
Accessories: UB-DXR8 (U-barcket)
Material: ABS (Matte Finish, Black)
